The GN GNLS3661 large linear vibrating screen is a high-performance screening machine designed and manufactured by Hebei GN Separation & Conveying Equipment Co., Ltd. It serves as a critical piece of equipment for material classification and dewatering in domestic mining operations, particularly within the iron ore, coal, and non-ferrous metals sectors. Its core function is to efficiently separate solid particles by size or to remove moisture from slurry, which is fundamental to modern mineral processing, coal washing, and tailings management.
The mechanical operation of the GNLS3661 is based on a forced synchronous linear vibration principle. At its heart are two high-power gear-type vibrators, installed on the screen body. These vibrators contain pairs of gears that ensure their shafts rotate synchronously in opposite directions. This counter-rotation generates a powerful, unified (excitation force) along a single, fixed linear path. The entire screen box, supported by robust vibration-damping springs, is driven to perform a reciprocating linear motion. This design is superior to traditional eccentric block vibrators, as it eliminates unbalanced forces, reduces vibration decay, and significantly extends bearing and overall mechanical life. The direction of the excitation force can be adjusted, allowing operators to control the speed and trajectory of material travel across the screen surface for optimized processing.

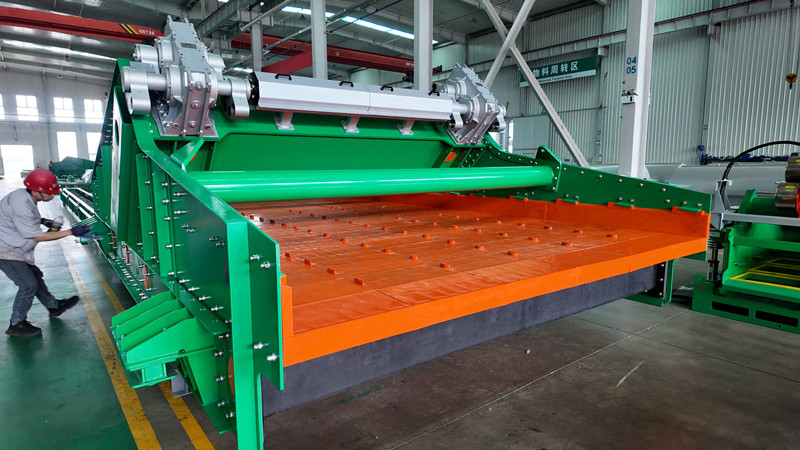

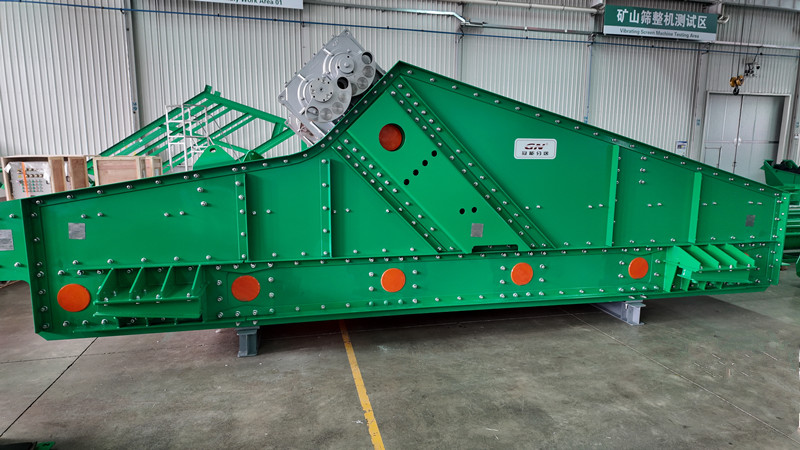

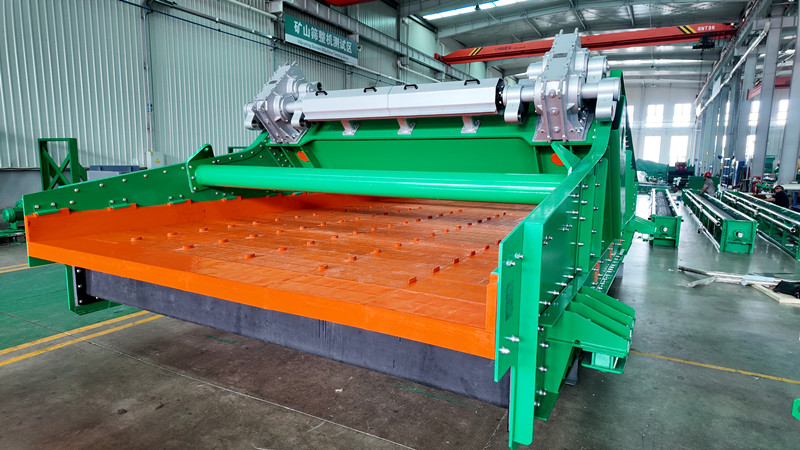

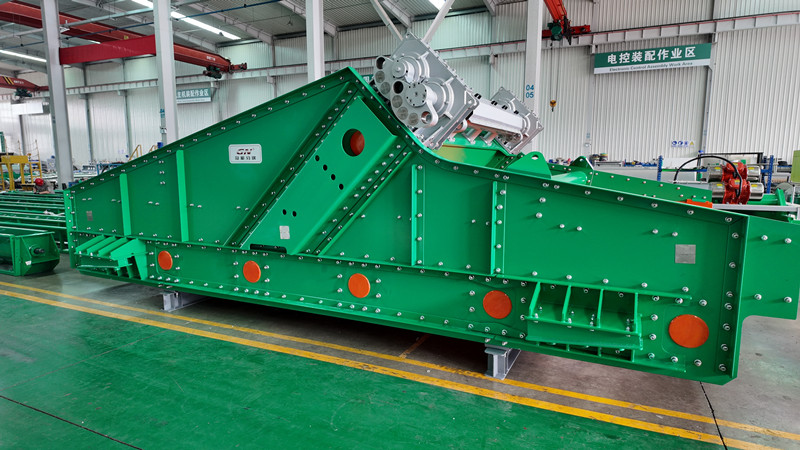

Structurally, the GNLS3661 is engineered for durability and high capacity. The screen box features side plates formed from single, bent steel plates, eliminating welded seams that are prone to stress cracking. Critical stress points, analyzed and optimized using Finite Element Analysis (FEA), are reinforced to withstand continuous, high-intensity operation. The screening surface is a large-area, high-wear-resistance polyurethane screen panel, which offers excellent performance in wet, sticky, or abrasive conditions. The machine’s modular design facilitates transportation, installation, and maintenance. It can be installed at a positive incline (typically 10-15 degrees) to use gravity to aid material flow, or horizontally to extend retention time for more thorough dewatering, such as in tailings dry discharge systems.
In mining applications, the GNLS3661 demonstrates several definitive advantages that contribute directly to operational efficiency and cost-effectiveness. First is its high processing capacity, capable of handling up to 2500 tons per hour, which meets the demands of large-scale, modern mining facilities. Second is its screening efficiency and precision; the stable linear motion ensures even distribution of material on the screen, preventing segregation and plugging, and allowing for accurate size separation down to 1mm. Third is its exceptional reliability and low maintenance. The gear-type vibrator design and robust construction minimize unscheduled downtime. Key wear parts are easily accessible and replaceable, and the use of long-life components like polyurethane panels reduces the frequency and cost of consumable changes.
A significant application advantage is its role in environmental sustainability and resource recovery. In tailings processing, the GNLS3661 can efficiently dewater slurry to a moisture content below 30%, producing a “cake” suitable for dry stacking. This drastically reduces the volume of wet tailings sent to impoundment ponds, minimizing land use and the associated environmental risks. Similarly, in coal washing plants, it effectively dewaters fine coal slurry, recovering valuable product and reducing the load on water treatment systems.
Finally, the GNLS3661 offers strong adaptability and customization. It can be tailored to specific site layouts, material characteristics, and process requirements, including screen deck configuration, drive motor power, discharge chute design, and integration with automated control systems. This flexibility, combined with localized technical support and spare parts supply, makes it a practical and reliable choice for domestic mining companies seeking to enhance their processing capabilities, lower operating costs, and align with industry trends toward greener and more intelligent mining operations.
